36 Piece SPACE BLOCK SET
IMPORTMore Details
36 Pc. Round Space Block Set has the following specifications:
- Overall Diameter: 3/4″
- Accuracy: +/-0.0001
- 36 Blocks included
- Working surfaces hardened to Rc 57-60
- Individually marked
Features:
- Packaged in a high quality fitted case
- For quickly setting stops and setups on lathes, milling machines and drill presses, setting sine bars, etc.
- Size marked on each block.

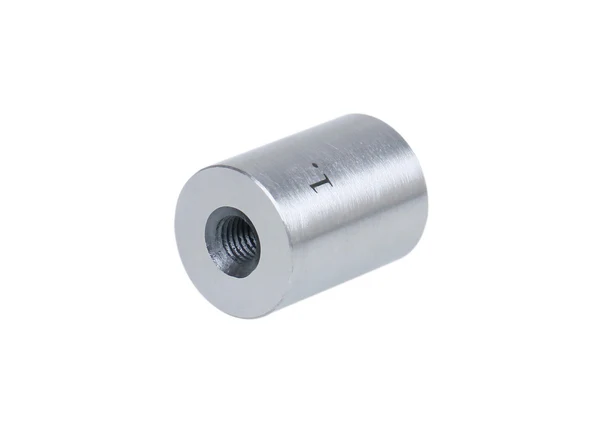

- Overall diameter is 3/4″ and ID is threaded: 6mm x 1.0mm Working surfaces hardened to RC 58-60.
- Surfaces precision ground and lapped to tolerances shown.
- Four connecting screws supplied to form whatever length is desired.
- Furnished in plastic case

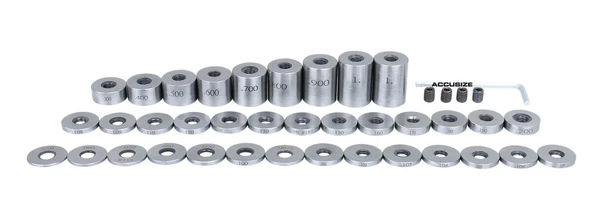

The following blocks are included in this set:
- .050, .060, .0625, .070, .080, .090, .100, .101, .102, .103
- .104, .105, .106, .107, .108, .109, .110, .120, .125, .130
- .140, .150, .160, .170, .180, .190, .200, .300, .400, .500
- .600, .700, .800, .900, 1.00 (2 ea.)
36PC SPACE BLOCK SET 36 Pc Space Block Set Hardened To 57 - 60 Rockwell NEW Work surface hardened to Rc 57-60 Accuracy ±0.0001” Four connecting screws are included to make any length desired Made of precision tool steel Individually marked Meets or exceeds federal specifications
Fitted case 9 Blocks: 0.101 to 0.109 in 0 .001” steps 15 Blocks: 0.050 to 0.190 in 0.010” steps 9 Blocks: 0.200 to 1.000 in 0.100” steps 2 Blocks: 0.0625” and 0.125” 1 Extra Block: 1.000"
