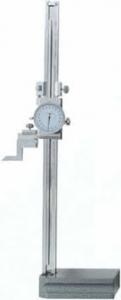

0-12" DIAL HEIGHT GAGE . .0001" graduation. .100" dial revolution. Adjustable dial for easy zero settings.
Made of hardened stainless steel with black bar graduations on a satin chrome finish. Comes with carbide tipped scribe,clamp and wooden case.
0.4" TO 0.7" DIAL BORE GAGE SET
.
2.4 bore depth
9 anvils
This dial-type cylinder bore gauge set has a 2" to 6" range that can cover most motorcycle and automotive engines. Don't even think of buying a used engine block or jugs for your bike without using one of these babies to check things out first.
Comes with fitted carrying case.
Graduation: 0.0005"
AO645187 1.4 TO 2.4 DIAL BORE GAGE SET
6 bore depth. 6 anvils. This dial-type cylinder bore gauge set has a 2" to 6" range that can cover most motorcycle and automotive engines. Don't even think of buying a used engine block or jugs for your bike without using one of these babies to check things out first. Comes with fitted carrying case. Graduation: 0.0005"
CS1239 12" 4 PC COMBINATION SQUARE . 12" blade with 4R graduations in 8ths,16ths,32nds and 64ths. First inch also graduated in 32nds & 64ths. Double indexed protractor graduated 180 degree with baked enamel finish. Square head has level.
FEATURES:

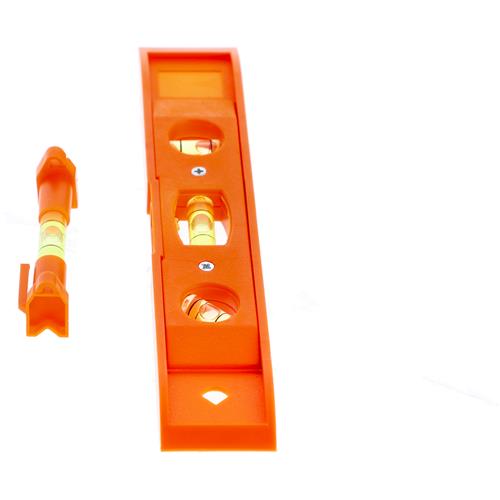

• 9"" Torpedo Level
• 3"" mini-line level
• Use to level: washers, dryers, pictures, refrigerators, stoves, work benches, shelves, doors.
• Sturdy Carbon Steel Construction
•90 Degree Angle Polished Handle
•Hardened Steel
• Accuracy to workshop grade
• Size: 2"
- 2-6" inch range
- 6" bore depth
- 3pc washers and 11 pc Anvils (1 anvil installed in the bore gage probe and 10 pc in case slot)，No product for two slots is correct.
- Size includes: 4.0'', 3.8'', 3.6'', 3.4'', 3.2'', 3.0'', 2.8'', 2.6'', 2.4'', 2.2'', 2.0''
- Grad. 0.0005“ Self-centering measuring heads, chrome plated handle and includes extension holder and good quality fitted case
FEATURES:
- Hardened to 65 RC.
- Manufactured in a controlled environment to ensure accuracy.
- Meets or exceeds federal spec ASME B89.1.9-2002.
- Workshop grade B without certificate.
- Surface finish: .4 millionths (.01 microns).
- Includes fitted case.

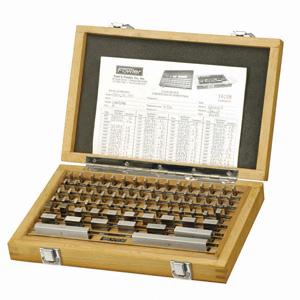

SET INCLUDES:
1 Block: .050"
10 Blocks: .1000-.1009" in .0001" steps
9 Blocks: .101-.109" in .001" steps
9 Blocks: .110-.190" in .010" steps
4 Blocks: .200-.500" in 1.00" steps
3 Blocks: 1, 2, 4"
Set includes 2", 3", 4" and 6" squares.
FEATURES:
• Made of hardened steel, these economy squares have true right angles both inside and outside.
• Beams and blades ground and lapped for straightness and parallelism.
• Length of hardened blade is measured from inner edge of beam to end of blades.
• Designed for schools, apprenticeships and training programs.
• Beam grooved at inner corner for clearance of burrs and dirt.
• Squareness of the blade edge to the working face of the stock is .0006"
Highly accurate for set-up and layout work
4R graduation styles: 8ths,16ths,32nds & 64ths. 4" blade length
Features
- Idea for Precision Layout Work
- Used Either as a Parallel or Double Square
- All Blades Fully Hardened and Tempered
- High Contrast, Micro-Fine Blade Graduations
- Durable, Easy to Read Satin Chrome Finished Blades
- Blade Length: 4"
- Reads: 1/8,1/16,1/32,1/64
- Made in USA by PEC Tools
- Blades are hardened and tempered.
- Satin-chrome finished blades.
FEATURES:
- Measures the True Sizes of Holes, Slots and Recesses from 5/16" - 6"
- Contact Plungers Automatically Self-Center at All Times and in All Positions
- Plungers Locked in Any Desired Setting
- Locking Mechanism Consists of a Knurled Screw at the End of the Handle
- Available as Individual Gages or in Sets
- Satin Chrome Finish
- Contact Ends are Hardened and Radius Ground Providing Clearance for Insertion into the Smallest Hole the Gages will Enter
SPECS:
- Measuring Range: 5/16" - 6", 6pcs (1 x 1/2" to 3/4"; 1 x 2-1/8" to 3-1/2"; 1 x 3/4" to 1-1/4"; 1 x 3-1/2" to 6"; 1 x 5/16" to 1/2"; 1 x 1-1/4" to 2-1/8")
- Unique Design: Contact points are made of hardened tool steel, ends are precision ground for radius measurement, and a rigid handle with self-centering system allows quick inspection of internal dimensions
- High-Quality Material: The telescoping gage set is made of rust-proof steel material, nickel-plated surface, with good side arc, strong and durable, effectively prolonging the use time
- High Performance: The spring tension of the t bore hole gauge is constant, and the hand feel is uniform and smooth, which can not only ensure accurate measurement, but also improve your experience
- Easy to Carry: We provide you with a suitable plastic bag case for easy storage and effectively avoid product damage
FEATURES:
- Steel plug gages; MINUS
- Size: .833-.916"
- Set qty: 84
- Length: 2"
- Accuracy: +.0000" -.0002"
- Center less lapped with 10 micro finished
- Uniform 2" overall length
Specifications:
| Minimum Diameter (Decimal Inch) | 0.8330 |
| Maximum Diameter (Decimal Inch) | 0.9160 |
| Tolerance (Decimal Inch) | 0.000200 |
| Tolerance (mm) | 0.0002 |
| Class | ZZ |
Very useful in finding center of a round bar quickly and accurately.
- Punch is hardened to hardness of 55+/-2HRC and precisely ground
- Bell Punch Easily locates and allows center punching of ends on round stock of up to 35mm
- Hardened to 48-52 HRC
- A Very Handy Tool if required Precise Drilling on Round Bar
- Easy & Accurate Engineering Machine Workshop Tools

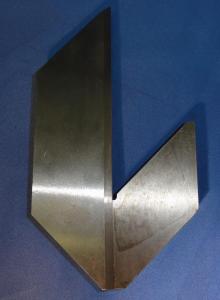

MCS-2256 1 1/2" Dia. Center Square . Made from ground tool steel,hardened and tempered blade. 1 1/2" work diameter. Useful square for rapid location of round bar or disc center. Place the round bar between the center square. Scribe different lines on the workpiece each time,changing its position. Center of the scribed lines will be the accurate center of the workpiece.
06440127 DIAL THICKNESS GAGE .0001" GRADUATION . Features: enamel frame. High grade steel measuring faces. Hardened stainless steel spindle. Dull chrome-plated indicator case. Grooved stand with thumb-release mechanism. Reading direct 0-100 (with revolution counter). Clear black graduation in .001". 1 1/64" throat capacity.In deluxe velvet-lined case.Reg:$87.40
FEATURES:
- Large LCD Screen
- Overload Protection
- Data-Hold Mode
- Auto Power Off
- Battery 9V included
- Test Lead: Plug Back & Red
- GS/CE Approved

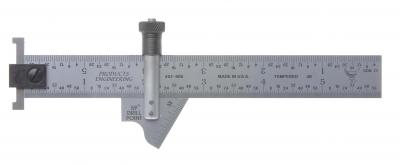

• Insures correct drill point angle of 59° for better, faster cutting
• Accurately measures drill lip lengths
• An all-around tool - also can be used as plain rule, hook rule, depth gage, try square and slide caliper
Features:
- For Measuring Properly Ground 59° Drill Tips
- Rule and Slide Made of Steel
- Satin Chrome Finish
- Slide is Graduated 32nds
- End Clip is Adjustable and Removable
- Versatile – Can be Used as Rule, Hook Rule, Try Square. Depth Gauge or Caliper, and for Layout
Graduations:
8ths, 16ths, 32nds, 64ths
SPECS:
| Brand | PEC |
| Model # | 5070 |
| Length | 6" |
| Finish Coating | Satin Chrome Finish |
| Graduation | 8ths, 16ths, 32nds and 64ths of an inch |
| Tool Material | Steel |
| Weight | 0.119 lbs. |
| Country of Origin | UNITED STATES OF AMERICA |
GENERAL Stair Gage Set MADE IN USA
DESCRIPTION The Stair Gage Set adds an extra dimension to a standard rafter square, allowing you to make uniform layouts for angle cuts. This tool is a must have for laying out rafter and stair stringers, and cuts down on time wasted making repetitive measurements. Features: Brass plated steel stair gage assures fast and uniform layout in repetitive work including angle cuts on rafters and stair stringers Attaches easily to all metal rafter squares Set of 2 pieces
- FAST & UNIFORM LAYOUTS – Speed up any measuring job, with better accuracy! Ideal for repetitive work such as cuts on rafters, stringers, or any type of stairway work
- UNIVERSAL FOR ANY SQUARE – Easily clamps to any metal framing, rafter or carpenter squares. An essential woodworking tool - no square should be without a set
- DURABLE & RUST RESISTANT – Brass plated steel for lifetime use and rust resistance
- EASY TO USE – After measurements, simply tighten the tops onto the square to use as references. The knurled screws allows for fast and easy adjustments
GENERAL TOOLS ECONOMY FEELER GAGE MADE IN U.S.A.
General's best selling feeler gage provides precision accuracy at a reasonable price. 3 x 1/2" leaves.
- Each leaf is etched with a size number (its thickness) measured in thousandths of an inch, as well as its millimeter equivalent
- Knurled lock nut holds leaves in desired position]
- No. of leaves: 26
- Leaf dimensions: 3 in. (L) x 1/2 in. (W)
- Leaf thickness: 0.0015 to 0.025 in. (0.038 to 0.635mm)
- Squares are used as measurement tools and for marking 90° angles
- Squares feature a rust-proof, stainless-steel blade
- Black, precision-etched scales are easy to read
- High-impact ABS handle for durability
- 8" length
MS-123 MACHINIST SURFACE GAUGE . Scriber hardened. Sturdy construction. 1/2" round base. 3/8" diameter.
MCS-2257 3" Dia. Center Square . Made from ground tool steel,hardened and tempered blade. 3" work diameter. Useful square for rapid location of round bar or disc center. Place the round bar between the center square. Scribe different lines on the workpiece each time,changing its position. Center of the scribed lines will be the accurate center of the workpiece.
These matched-pair blocks and clamps are equipped with screws that allow for easy diameter changes, and their grooves help you have quick and effortless clamping of your workpieces.
Benefits
- Screws provide easy diameter changes while grooves allow for quick clamping.
Applications
Accurate enough to use for layout and surface plate work. Designed so the clamps do not protrude over the sides, and therefore can be used on their sides.
Features
- All sides ground square and parallel to each other.
- V's are ground central, parallel and square to the ends.
- Rugged enough for machining operations.
- Made of hardened and ground chrome steel.
- 90° "V" Angles.
SPECS:
2-3/4" x 2-1/2" x 1 3/4".
1-1/2" capacity.
| Minimum Capacity of Vee | 1/4" |
|---|---|
| Maximum Capacity of Vee | 1-1/2" |
| Dimensions | 2-3/4" x 2-1/2" x 1-3/4" |
| No. of Blocks | 2 |
| Type | "V" Blocks & Clamps Set |
NUT AND SCREW GAUGE Super-handy measuring tool for fast and accurate identification of fastener sizes Measures bolt/nut, screws by shaft or head size, drill bit diameter; rulers for length, thread count Includes SAE, Metric and ISO sizes & identifiers Screw & bolt sizes: SAE #6 - 3/4"; Metric M6 - M20 Saves time, helps prevent sizing errors, rugged thermo-plastic construction; 9"L x 4"W
Designed to measure outer thickness. Ideally suited for quick inspection of paper, leather, wire, plastic, sheet metal etc. Measuring faces are finely ground for precise measurement to .001" or .02mm. Dial Reading 0 - 100.
FEATURES:
- . 0-1/2" Range .
- .0005" graduation
- Dial reading: 0-100.
- Throat capacity: .500"
MGR-1109 RADIUS GAUGE 1/32" to 1/4" . Radius gauge is used by tool and die makers,screw machine operaters,machinists, layout men,patternmakers and other mechanics to lay out and check radius of tools,dies,patterns,etc.
RADIUS GAUGE 17/64" to 1/2"
Radius gauge is used by tool and die makers, screw machine operators, machinists, layout men, patternmakers and other mechanics to lay out and check radius of tools, dies, patterns, etc.
FEATURES:
- 32 PC Radius Gage
- Leaves: 32 ; Range: 17/64 to 1/2" by 64ths
- Made from the finest quality steel available ; Each gage is marked with size ; Each gage has leaves for measuring surfaces for convex and covace radii
- Useful for tool and die makers, machinists, screw machine operators and other mechanics to layout and check radii of tools, dies, etc.
- Quantity: 1 per order ; Shipping Weight: 4.5 ounce ; Overall length (when closed): 2-3/4'' long
Use to provide the correct size drill bit, or to size fastener to determine what bit should to use.
- Heavy duty gauge steel.
- Measures drill bits from 1/16” to 1/2”.
- Folds away for easy storage.
- Measures thread counts from 4 to 42 SAE and .25 to 5.5MM
- 60° thread profiles and locking devices
- Easy to hold and use
- Precision cut edges for accurate use
- Compact and easy to store
- Both MM and SAE all on one unit
MS121 Toolmaker's Surface Gage (2 spindles 9" & 12") • Base and scriber are hardened • Bottom grooved for cylindrical work • Front recessed for depressing spindle below base level • Features fine adjustment • Base has 2 retractable gage pins to set against edge of a surface plate
