0-12" DIAL HEIGHT GAGE . .0001" graduation. .100" dial revolution. Adjustable dial for easy zero settings.
Made of hardened stainless steel with black bar graduations on a satin chrome finish. Comes with carbide tipped scribe,clamp and wooden case.
0-180° Rectangle Protractor w/6" Arm
Features:
- Measures Angles From 0-180°
- Used For Drawing Radial Lines, Transferring Angles And Setting Bevels
- Head Measures 3-5/16″ x 2″
- Features 6″ Arm And Knurled Thumb Lock Nut
- Blade Secured Firmly By Lock Nut At Any Angle
- Made Of Tempered Steel With Satin Chrome Finish
- Supplied With 6″ Arm
Style: Rectangle
0.4" TO 0.7" DIAL BORE GAGE SET
.
2.4 bore depth
9 anvils
This dial-type cylinder bore gauge set has a 2" to 6" range that can cover most motorcycle and automotive engines. Don't even think of buying a used engine block or jugs for your bike without using one of these babies to check things out first.
Comes with fitted carrying case.
Graduation: 0.0005"

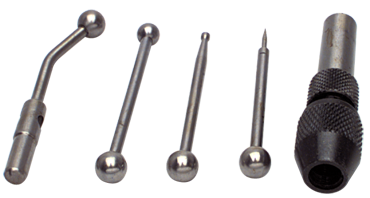

Wiggler & Center Finder Set
FEATURES:
- To accurately find the position of tool spindle in relation to work surface, layout lines, holes, etc.
- Attachments snap into chuck and are clamped by a ball swivel joint which permits adjustment to an angular position or true concentricity.
- Includes a fitted case.
WIGGLER SET INCLUDES:
- .250" dia. ball contact,
- .100" disc contact,
- needle point attachment
- offset indicator holder
- With chuck & fitted case
For accurately locating working points on drill presses, lathes, milling and other machines
FEATURES:
- Hardened and tempered tool steel.
- For gaging uncoated sheet, plate iron, and steel.
- Gages provide measurements from 0 to 30 on one face and shows decimal equivalents on reverse side.
- U.S. Standard.
Designed to measure outer thickness. Ideally suited for quick inspection of paper, leather, wire, plastic, sheet metal etc. Measuring faces are finely ground for precise measurement to .001" or .02mm. Dial Reading 0 - 100.
FEATURES:
- . 0-1/2" Range .
- .0005" graduation
- Dial reading: 0-100.
- Throat capacity: .500"
CENTER FINDER
Features:
- Accurately and quickly locates center on round workpieces.
- Shaft located in drill chuck or collect center is obtained when pointer lines up with line on short shaft.
- Satin chrome finish
APPLICATIONS
- Place tool in drill chuck or collet and line up pointer with line scribed on shaft.
Features:
- Narrow Designed Blades Permit Use For Internal And External Screw Threads
- Locking Device At Each End To Secure All Blades For Storage Or Position An Individual Blade Use
- Correct Pitch Is Determined By Matching Blade Teeth With Threads
- Each Blade Clearly Marked With Proper Thread Size
- Sets Are Available In Wide Range Of Sizes And Blade Combinations
- Blades Protected In Sturdy Steel Case
- Any Combination Of Blades Is Available By Special Order
Type: English Gage
Number of Blades Included: 51
Number of Groups: 3
Blade Sizes Included (Inch):
- Group 1: 4, 4-1/2, 5, 5-1/2, 6, 7, 8, 9, 10, 11, 11-1/2, 12, 13, 14, 15, 16, 18
- Group 2: 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50
- Group 3: 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 82, 84
WIRE GAUGE 0 to 36 GAUGE U.S. STANDARD
Gage is made to the recognized commercial standard in the United States for uncoated sheet metal, plate iron and steel, based on weights in ounces per square foot.
- Gage provides measurements from 0 to 36 on one face and decimal equivalents on the reverse side.
- S. standard wire gauge for sheet, plate-iron & steel.
- For gaging non-ferrous wire and metal such as copper, brass, etc.
- For gaging uncoated sheet, plate iron and steel.
- American Standard
- U.S. Standard
- Hardened steel
