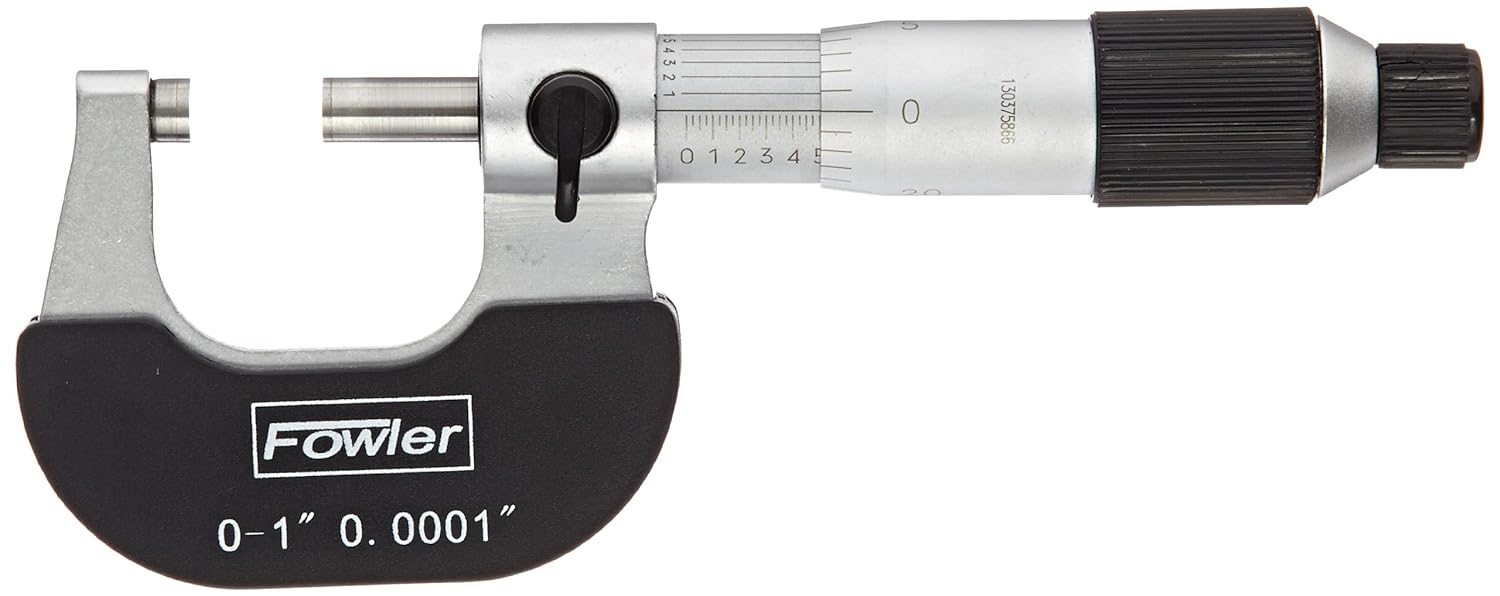

0-1" Swiss Style Micrometer by FOWLER

More Details

Fowler's Swiss Style micrometers are made exclusively for Fowler.  A great value—they offer the same fine features and quality that you expect from comparable tools at a fraction of the cost.

FEATURES:

• Micrometer Screw Gage: With a flat anvil/spindle pair for general purpose measuring, this Swiss style design for balance and quality has 0.0001" graduation and ±0.00016" accuracy for precise readings
• Accurate Measurements: Anvil and spindle hardened and precision-ground; micro-lapped carbide measuring faces; spindle diameter of 0.256", 0.00003" flatness, and 0.00005" parallelism for accurate measurements
• Easy to Use: Quick, easy zero adjustments on the sleeve and positive lever locking clamp; friction thimble with ratchet stop applies constant force for repeatability between users, and unique friction design allows one-hand operation
• Satin Chrome Finish: Sleeve, thimble, and frame are satin chrome finished; heat-insulated frame helps reduce temperature-related expansion or contraction and isolates heat from the operator's hand

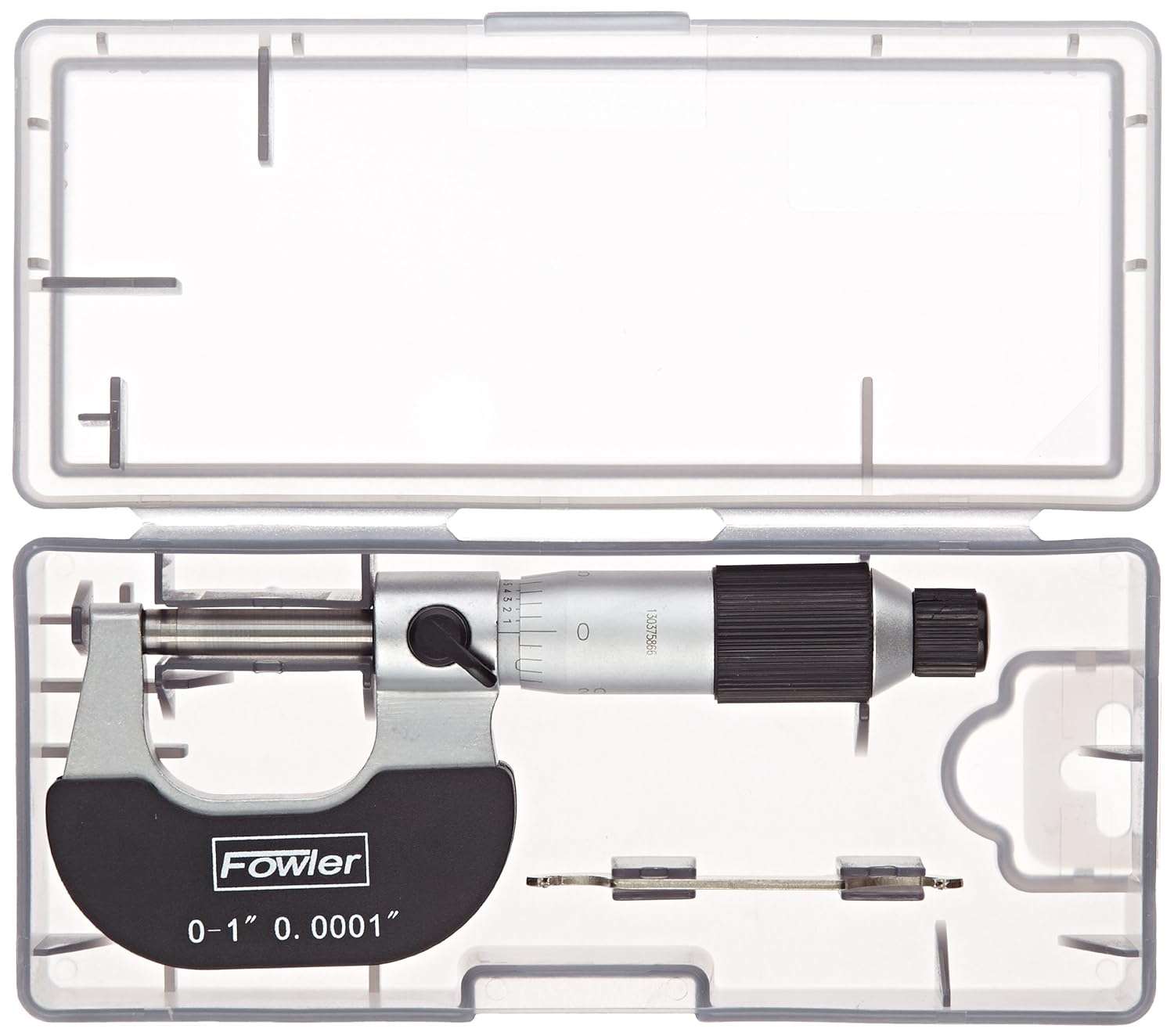

• Set Includes: Fowler 52-229 Series outside inch micrometer, a wrench, and a fitted case for storage

SPECS:
• Unique friction design allows one hand operation
• .0001"/.01mm graduations
• ± .00016" accuracy
• Swiss style design, balance and quality
• Friction/Ratchet thimble assures you of consistent readings at all times. Barrel, thimble and frame are satin chrome finished; microfine graduations allow easy reading
• Measuring faces are carbide tipped
• A wrench is included, permitting quick and easy zero adjustment on sleeve
• Flatness: .00003". Parallelism: .00005" for the  0—1"/0—25mm measuring range
• Fully insulated frame isolates heat from the operator's hand
• One piece design, extremely well balanced, lightweight (0—1"/25mm size weighs only 7-3⁄4 oz.)
• Positive lever-locking clamp ensures reliable measurement at all times
• Spindle diameter .256"/6.5mm. Anvil and spindle hardened and precision ground
• Meets or exceeds Fed. specs for accuracy
• Includes a case
