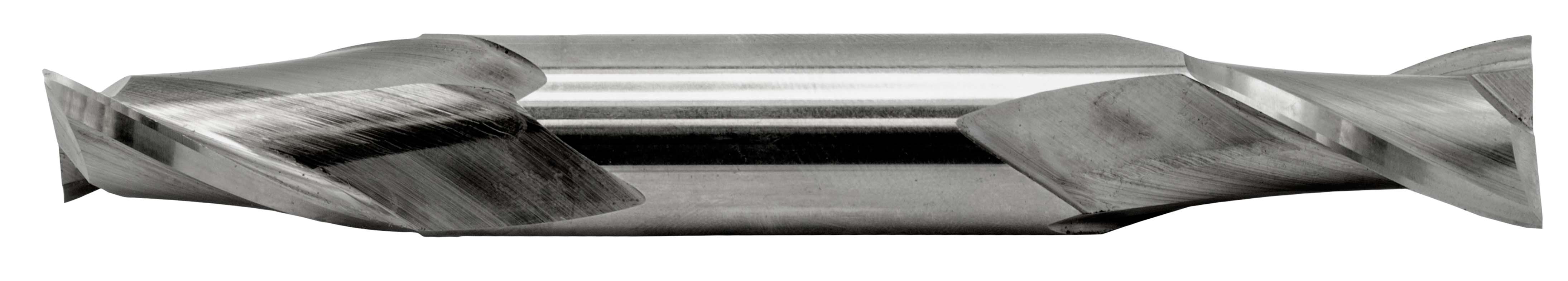

11/16" High Speed Steel End Mill Double End- 2FL

11/16" High Speed Steel End Mill Double End- 2FL

COMPLETE MANUFACTURER EQUIPMENT $22.3922.39
  • Two flute end mills are used for all end mill operations. The flute volume is more with 2 flute mills, but the feed rates are lower. The fewer number of flutes allows for better chip evacuation in grooving operations.
  • Double End Mills have two cutting edges. This results in double the tool life and cost savings, compared to Single End Mills.
  • Two flute double end mills are designed for slotting, keying, grooving and general purpose milling.

FOR USE ON:

Aluminum, brass, bronze, plastic, stainless steel, steel

SPECS:

  • Cutting Direction: Right Hand
  • End Mill Type : Double End
  • Fractional Size : 11/16”
  • Length of Cut : 1-5/16”
  • Number of Flutes : 2
  • Overall Length : 5”
  • Shank Diameter : ¾”
  • Size Type : Fractional
  • Tool Material : High Speed Steel
  • Helix Angle: 30°



SKU C-22
Qty
C-22 11/16" High Speed Steel End Mill Double End- 2FL COMPLETE MANUFACTURER EQUIPMENT

More Details

2 Flute High Speed Double End Mill

11/16" Flute Dia.

3/4" Shank Dia.

1-5/16" Flute Length

5" Overall Length

Right Hand Cut Spiral

Specifications

Diameter Of Cut: 11/16" Shank Diameter: 3/4" Length Of Cut: 1-5/16" Overall Length: 5"
