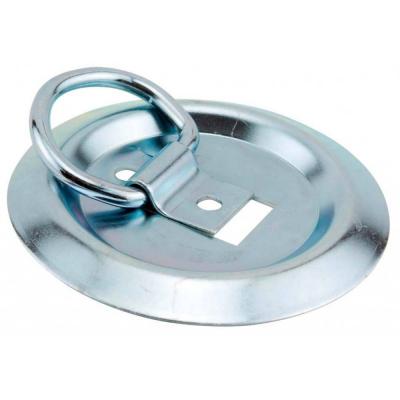

Erickson Surface Mount Anchor 1,200 lbs Capacity
ERICKSON MANUFACTURING $3.993.99Erickson 1200 lbs Load Capacity Surface Mount Anchor Ring Anchor rings are a quick and easy way to add anchor points to your trailer. They can be mounted on the wall or the floors. They are incredibly easy to install, which makes them very popular.
Features & Benefits
- The mounting plate allows you to easily mount this ring to a floor or a wall
- The zinc plated finish protects against corrosion, extending the life of the anchor
- This anchor point is very versatile with different hook types
Specifications
1200 lb. Breaking Strength
400 lb. Working Load Limit
- Ring Specs:
- Recesses: 0.75″
- Width: 1.7″ (at widest point; inside)
- Height: 1″ (inside)
- Thickness: 0.25″
- Base Plate Specs:
- Diameter: 4.175″
- Base edge sits up 0.3″
- Mount hole dimensions: 0.25″ holes on 1.25″ center
- Always use grade 5 bolts or better for securing anchor (not included)
- Finish: Zinc Plated
As Seen In...
More Details
Proper Use/Safety Factors
- Always check to make sure the anchor ring is not damaged before use
- Always check to make sure the anchor ring is mounted correctly before use.
- If either of the above are true, do not use
- Be sure mounting bolts are installed in main frames in the floors or walls
- Never exceed the weight restrictions on this product
Specifications
Features:
Bright zinc-plated finish
Anchor plate measures 41/8" wide
Anchor ring measures 1/4" wide
Base plate has two 1/4" mounting holes
Rated 1200 lbs maximum load capacity
400 lbs Working Load Limit
